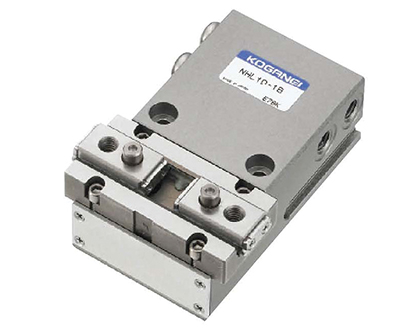

This series operates with an integrated linear guide and cam drive for finger operation that is perpendicular to the cylinder operation axis. Ultra-compact and ultra-light weight design provides maximum space reduction for OEM designs. The Selection Guide provides a summary of the 5 different NHL Series L shaped Pneumatic Gripper variations available. NHL Series Grippers offer:

• Parallel Type with High Precision, Preloaded Linear Guides Rotated 90 Degrees
• Design Allows for High O.D. Grip Force in a Smaller Envelope
• Work Ports Located on Both Sides for Easy Plumbing
• Low Profile Design Allows for Installations in Tight Places
• Dowel Holes Standard for Precision Installations
• RoHS Compliant

Operation
Double Acting Parallel Linear Guide L-Shaped
