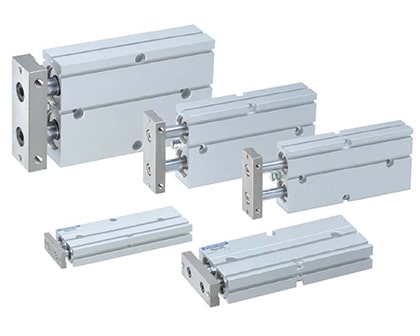

Ingenious non-rotating actuator combines two cylinders into one compact body. Reducing design costs and number of parts for non-rotating devices. Strengthened long bushing for the rod bearings realizes efficient design. The Selection Guide provides a summary of the 11 different TBDA /HTBDA Series Precision Guided Actuators available. TBDA /HTBDA Series Precision Guided Actuators offer:

• Precise Accuracy, Non-Rotating
• Double Piston Construction
• Mount in Any Direction
• Stopper Bolt Allows for Stroke Adjustment
• Magnet for Sensor Switch Included
• RoHS Compliance

Operations
Double Acting Twin Rod
Double Acting Twin Rod Long Bushing
